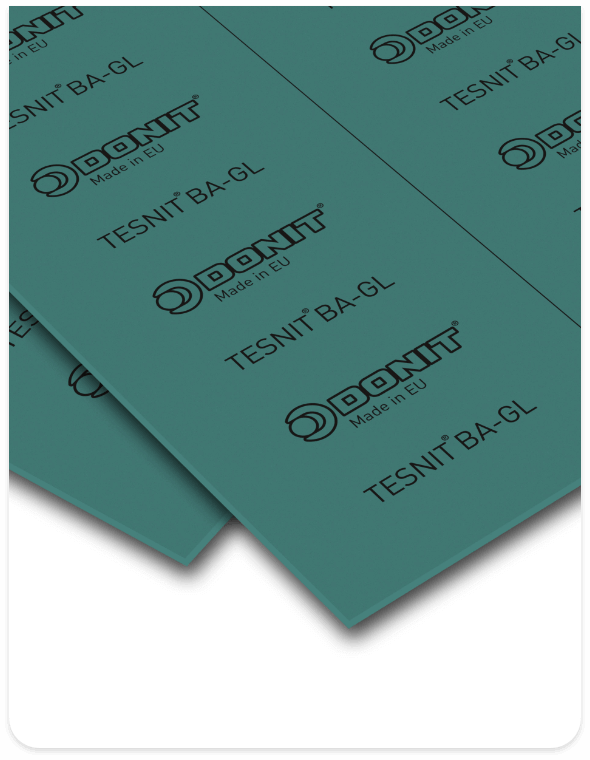

Tesnit® BA-GL

Material

BA-GL

Composition

Synthetic fibers bonded with NBR. On request available with wire reinforcement of expanded stainless steel

Colour

Green

Properties

Superior torque retention and good steam resistance. Excellent thermal resistance in combination with low gas permeability.

Industries

Steam supply, potable water supply, gas supply, shipbuilding, power plants.

Certificates

DIN-DVGW DIN 3535-6, DVGW VP 401, DVGW KTW, BAM (Oxygen), WRAS, TA-Luft (VDI 2440), GermanischerLloyd, EC 1935/2004, API 607, 100% Asbestos- FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)

Equivalent

Non-Asbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on all the above-listed certificates and approvals to assess Equivalence.

Download Technical Document

Density DIN 28090-2 g/cm3 1.8
Stress Resistance
16 h, 50 MPa, 175 °C DIN 52913 MPa 38
16 h, 50 MPa, 300°C DIN 52913 MPa 33
Specific Leak Rate DIN 3535-6 mg/(s.m) 0.03
Max OperatinG
Peak Temp °C 440
Continuous Temp °C 350
Steam °C 250
Pressure Bar 120
