Material

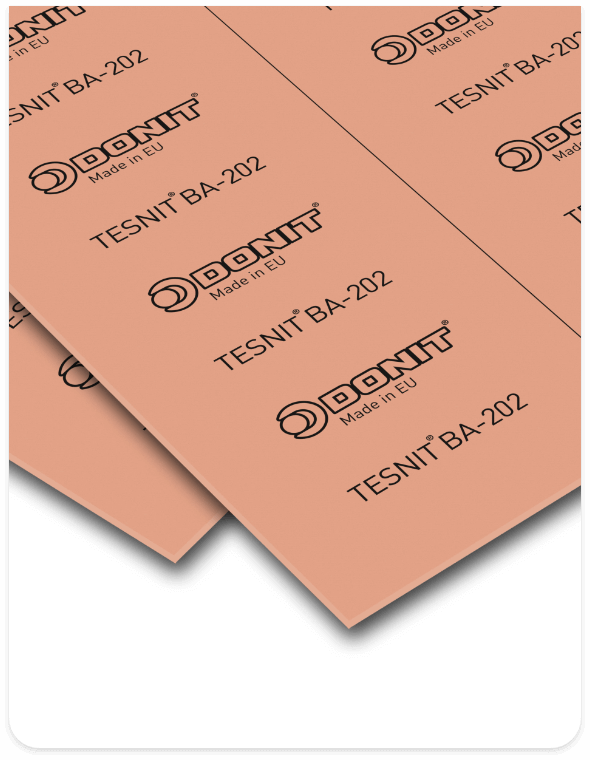

BA-202
Composition
Organic fibers bonded with NBR. Available with wire reinforcement on request.
Colour
Pink / Red
Properties
Very good chemical resistance against gases, oils, and fuels. Also highly water-resistant.
Industries
Pipeline systems, water supply industry, machine building
Certificates
100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
NonAsbestos can only be Manufactured in an Asbestos-FREE Certified Manufacturing Plant. Insist on the above-listed certificates to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.8 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 175 °C | DIN 52913 | MPa | 20 |
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.06 |
| Max OperatinG | |||
| Peak Temp | °C | 180 | |
| Continuous Temp | °C | 140 | |
| Steam | °C | 120 | |
| Pressure | Bar | 40 | |
