Material
SP
Composition

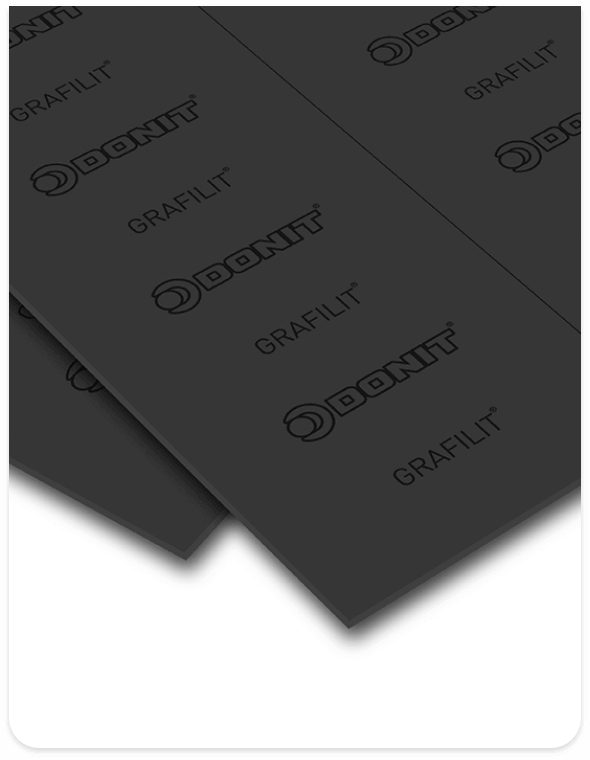

Flexible graphite sheets mechanically bonded to a tanged stainless-steel insertion (AISI 316; 0.1mm).
Colour
Black
Properties
Suitable to be used in the chemical and petrochemical industries, at high surface loads or high operating pressures.
Industries
Chemical industry, petrochemical industry, power generation industry.
Certificates
BAM (Oxygen), Germanischer Lloyd, DIN-DVGW DIN 3535-6, DVGW KTW, Fire safe API 607, DVGW VP 401, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Insist on all the above-listed certificates and approvals to assess Equivalence.
| Density | DIN 28090-2 | g/cm3 | 1.4 |
|---|---|---|---|
| Stress Resistance | |||
| 16 h, 50 MPa, 300 °C | DIN 52913 | MPa | 49 |
| Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.05 |
| Max OperatinG | |||
| Peak Temp | °C | -200 | |
| Continuous Temp | °C | 450 | |
| Pressure | Bar | 200 | |
