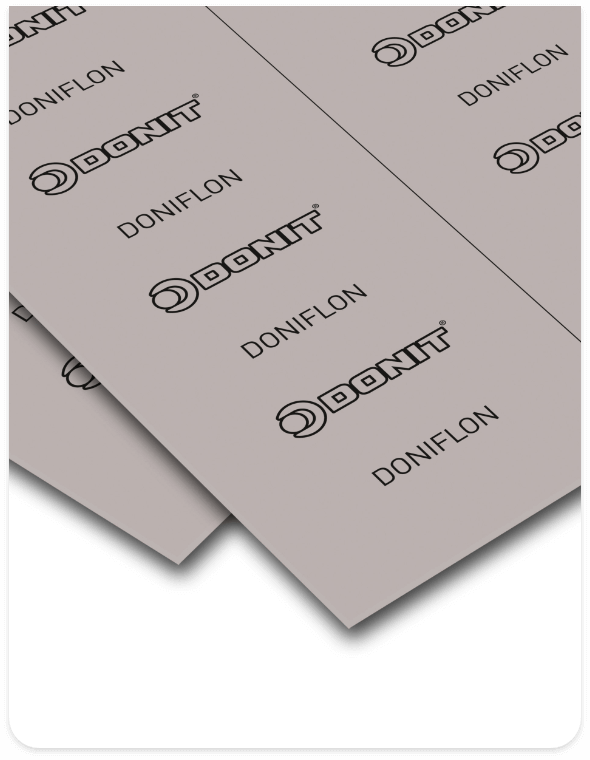

Material
2030
Composition
Modified PTFE resin filled with barium sulphate.
Colour
White
Properties
uitable for concentrated acids, strong alkalis, solvents, fuels, refrigerants, and steam. Not suitable for molten alkali metals and fluorine compounds. Low gas permeability.
Industries
Food industry, pharmaceutical industry, chemical industry, pulp & paper industry.
Application
Performance is far superior to Virgin PTFE Gaskets, PTFE Envelope Gaskets and PTFE Filled Seals.
Certificates
On request, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Insist on all the above listed certificates and approvals to assess Equivalence.
Density | DIN 28090-2 | g/cm3 | 3.0 |
---|---|---|---|
Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.002 |
Max OperatinG | |||
Peak Temp | °C | -200 | |
Continuous Temp | °C | 260 | |
Pressure | Bar | 80 |
