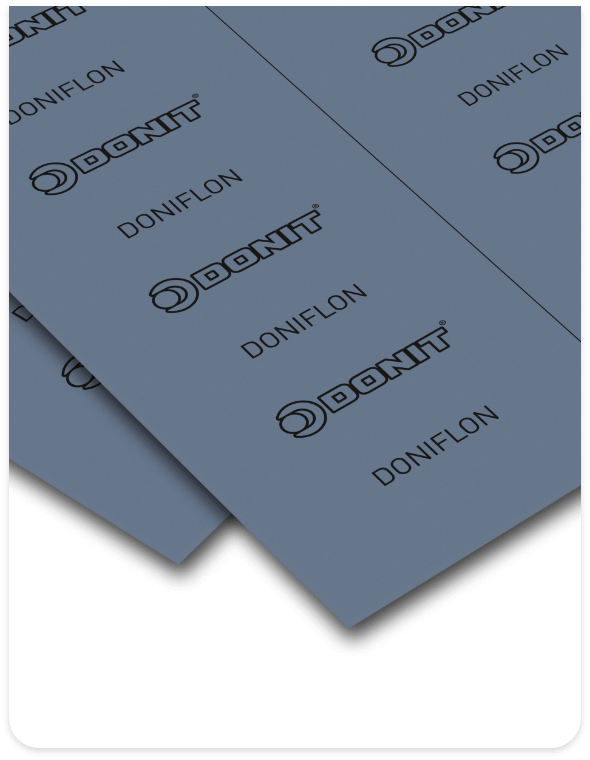

Material
2010
Composition
Modified PTFE resin filled with hollo micro-glass beads
Colour
Blue
Properties
Suitable for pressure sensitive flanges such as glass lined, ceramic flanges, glass reinforced plastic flanges and uneven or distorted flanges. Chemically suitable for almost all chemicals with the exception of molten alkali metals and fluorine compounds.
Industries
Food & beverage industry, pharmaceutical industry, chemical industry, pulp & paper industry.
Application
Performance is far superior to Virgin PTFE Gaskets, PTFE Envelope Gaskets and PTFE Filled Seals. Replaces Glass Filled PTFE.
Certificates
On request, 100% Asbestos-FREE Certified Manufacturing Plant (to avoid contamination) and Product (certified 100%)
Equivalent
Insist on all the above listed certificates and approvals to assess Equivalence.
Density | DIN 28090-2 | g/cm3 | 1.5 |
---|---|---|---|
Stress Resistance | |||
16 h, 50 MPa, 150 °C | DIN 52913 | MPa | 14 |
Specific Leak Rate | DIN 3535-6 | mg/(s.m) | 0.14 |
Max OperatinG | |||
Peak Temp | °C | -200 | |
Continuous Temp | °C | 260 | |
Pressure | Bar | 60 |
